Exhaust Flexible Pipe: Single Braid vs Double Braid Explained

Exhaust flexible pipes are among the most frequently replaced parts in automotive exhaust systems — and one of the most frequently misspecified. The choice between single braid and double braid construction has real consequences for product lifespan, customer satisfaction, and your reputation as a supplier.

This guide explains the construction differences, performance implications, and application guidelines for both types.

What Does an Exhaust Flexible Pipe Actually Do?

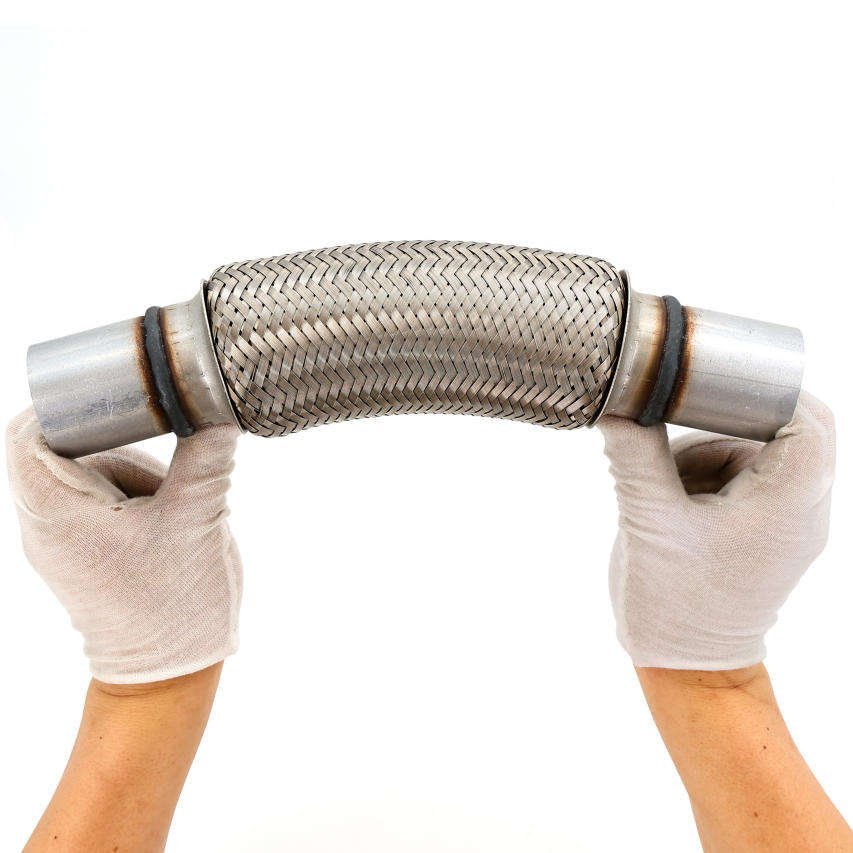

Before comparing braid types, it's worth understanding why flexible pipes exist at all. Engines move. They vibrate, they expand and contract with heat, and they shift position under load. A rigid exhaust connection between the engine and the downstream exhaust system would transmit all of that movement as stress — eventually cracking welds, breaking flanges, and failing pipes.

The flexible section absorbs three types of movement:

• Axial movement: Compression and extension along the pipe's length

• Lateral (angular) movement: Side-to-side deflection

• Vibration isolation: High-frequency engine vibration that would otherwise travel through the entire exhaust system

The flexible element is typically a corrugated inner liner made from stainless steel. The braid layer(s) are the structural reinforcement that contain the pressure and limit over-extension of the liner.

Single Braid Construction

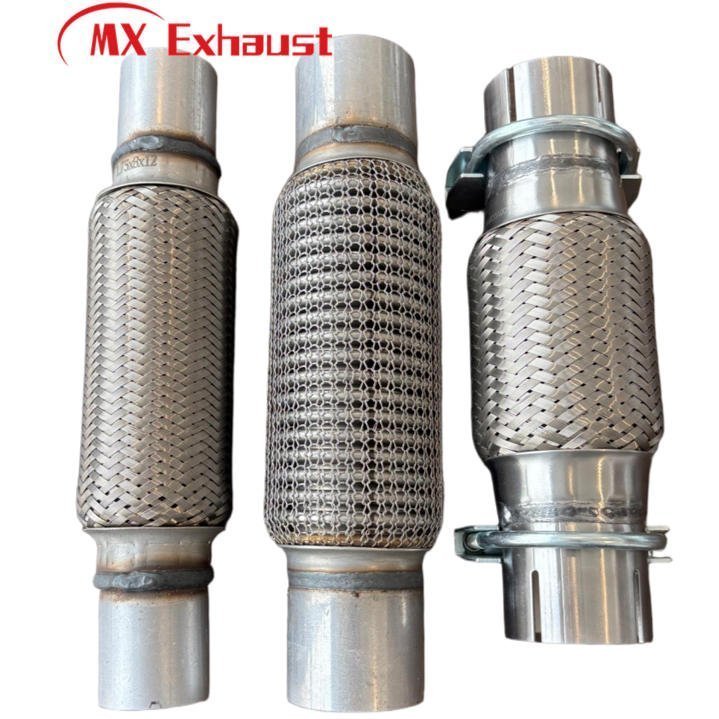

A single braid flexible exhaust pipe consists of:

• Corrugated stainless steel inner liner (typically SS304 or SS201)

• One layer of stainless steel wire braid woven over the liner

• End fittings (nipples, flanges, or plain ends depending on application)

The single braid layer provides the basic structural function: it prevents the corrugated liner from over-expanding under exhaust gas pressure, and it contains the movement within safe limits.

Double Braid Construction

A double braid flexible pipe adds a second braid layer over the first, with both layers interwoven at opposing angles (typically ±45° to the pipe axis). This creates a more robust structure with significantly improved properties:

• Higher burst pressure resistance

• Greater resistance to abrasion and external damage

• Improved containment of liner expansion under extreme conditions

• Better resistance to lateral over-extension (a common failure mode)

Side-by-Side Comparison

How to Choose: Application Guide

Use Single Braid For:

• Standard naturally-aspirated passenger cars (sedans, hatchbacks, small SUVs)

• Lower-displacement engines with moderate exhaust temperatures

• Price-sensitive replacement parts market (economy tier)

• Applications where the vehicle manufacturer originally specified single braid

Use Double Braid For:

• Turbocharged petrol or diesel engines (higher exhaust gas temperatures and pressures)

• Diesel trucks and vans (continuous high-load operation)

• High-performance and sport applications

• Vehicles operating in demanding environments (mining, construction, agriculture)

• Premium replacement parts where extended lifespan justifies the price premium

Common Failure Causes — and How to Avoid Them

Understanding how flexible pipes fail helps you advise customers on installation and application:

A Note on Interlock Layer Construction

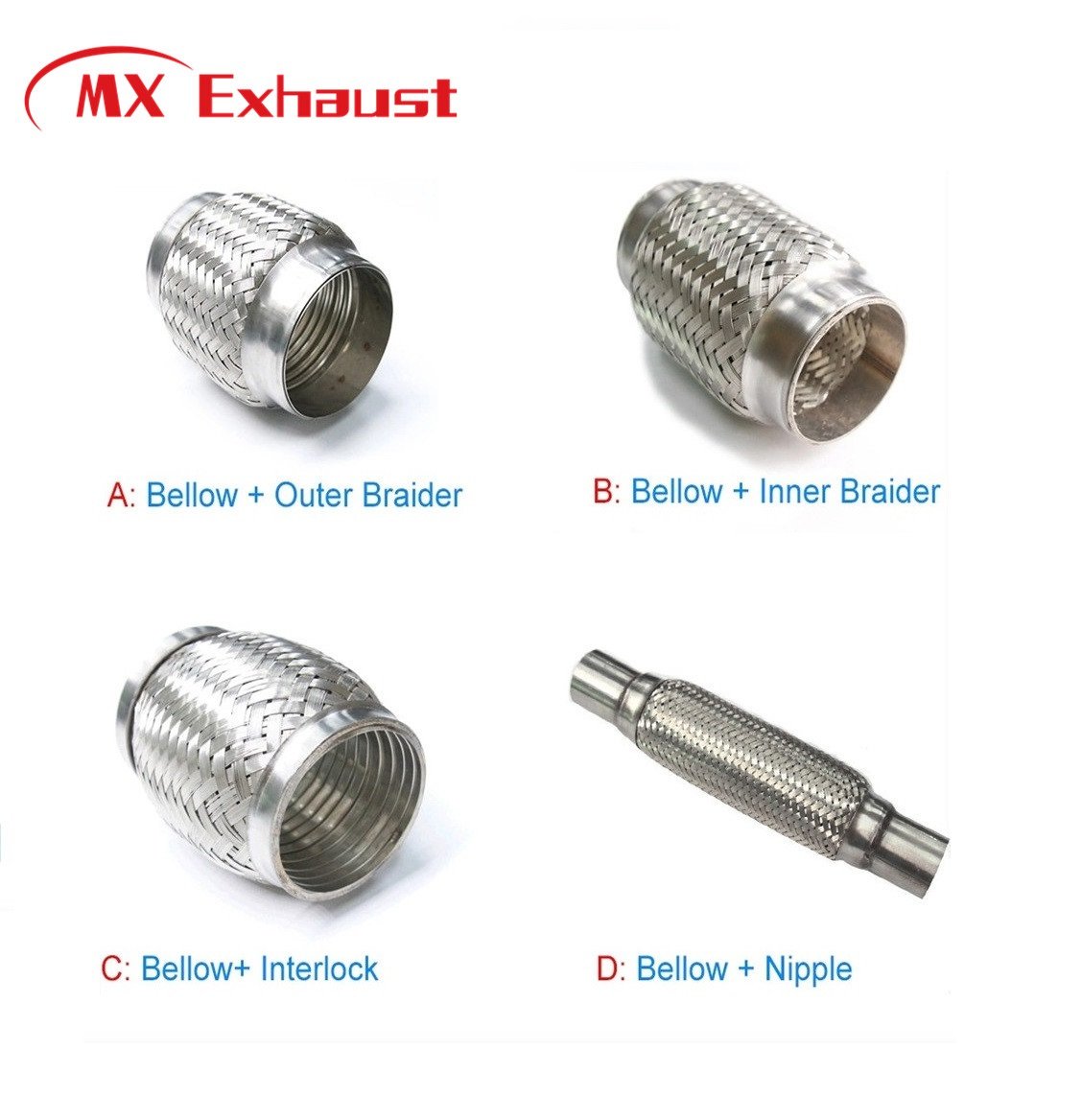

Some premium flexible pipes include an interlocking inner layer — a strip-wound stainless steel interlock — beneath the corrugated liner. This provides additional compressive strength and prevents liner collapse even under negative pressure conditions. This construction is most commonly found in heavy-duty truck and diesel applications where reliability is paramount.

MX Exhaust supplies flexible pipes with and without the interlock layer, in both single and double braid configurations, with SS201 and SS304 braid material options.

Conclusion

Single braid and double braid exhaust flexible pipes serve different applications. As a wholesaler or distributor, stocking both gives you the flexibility (no pun intended) to serve economy replacement buyers and premium application customers from the same supplier relationship.

The key is matching the specification to the application — and being able to explain the difference clearly to your customers. That knowledge is itself a competitive advantage.
