Most sourcing guides stop at shell shape and inlet size. That's not enough — not if you're building a catalog that your customers will actually trust.

This is a breakdown of what separates oval mufflers that perform from ones that just look the part. Internal design, material choice, port configuration — and why every one of those decisions changes what your end customer actually gets.

If you're a distributor or wholesaler sourcing oval mufflers, this is where it starts.

Why Oval Shape in the First Place

Before you spec anything, understand why oval mufflers exist.

The oval shell profile solves a clearance problem. Round mufflers are easier to manufacture but eat up vertical space under a vehicle. An oval body — typically wider than it is tall — lets builders route exhaust through tight chassis pockets, under low-slung trucks, or alongside frame rails without sacrificing muffler volume.

More internal volume means better sound control. That's why oval became the default for performance street builds, custom trucks, and anything where both ground clearance and tone matter.

The shape is a constraint turned into an advantage. What happens inside the shell is where the real differences show up.

Two Internal Designs — and What They Actually Do

Chambered Oval Mufflers (Baffle Design)

A chambered muffler routes exhaust gas through a series of internal compartments divided by baffle plates. The gas doesn't travel in a straight line — it's redirected, expanded, and partially reflected back on itself.

That reflection is intentional. When sound waves collide at opposite phases, they cancel each other out. The result is noise reduction without packing materials that can blow out or degrade over time.

What this means for your catalog:
  Deeper, more aggressive exhaust tone — preferred for trucks, muscle cars, and performance builds

  More durable long-term — no packing to replace or deteriorate

  Slightly more backpressure than straight-through designs, which can actually benefit naturally aspirated engines

  Well-suited to high-heat, high-cycle applications

  Chambered oval mufflers are a strong SKU for customers building systems that need to hold up over time and deliver a recognizable sound profile from day one.

Perforated Tube Oval Mufflers (Straight-Through Design)

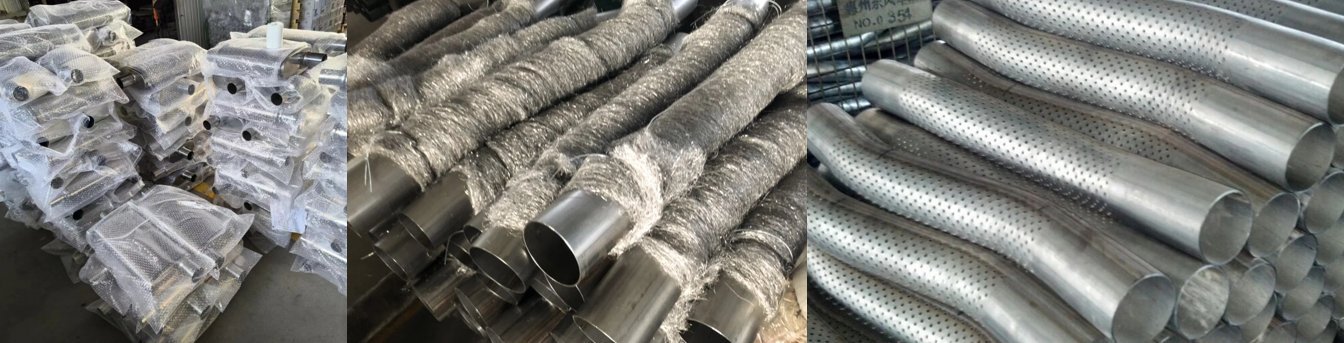

A perforated tube muffler takes a different approach entirely. Exhaust flows through a single inner tube with punched or drilled perforations. Packing material — typically fiberglass, stainless wool, or a combination — fills the space between the tube and outer shell.

Sound energy passes through the perforations and is absorbed by the packing. The exhaust gas itself stays in the main flow path.

What this means for your catalog:

  Freer exhaust flow — lower restriction, better for high-output or forced-induction applications

  Cleaner, smoother exhaust note — less aggressive, more refined

  Packing degrades over time (especially in high-temperature race applications), which creates a natural replacement cycle

  Easier to produce with offset or dual inlet/outlet configurations

  Perforated tube designs are the right call when your customers are prioritizing flow over tone — think tuner builds, European-style exhaust setups, or any application where backpressure is an enemy.

SS409 Stainless Steel: Why It's the Right Call for This Category

Material choice isn't marketing copy. It determines whether a muffler ships back as a warranty claim or becomes a repeat order.

SS409 — a ferritic stainless steel — is the industry standard for performance exhaust mufflers sold into the North American market, and for good reason.

Thermal performance: 409 stainless handles the continuous heat cycles that automotive exhaust generates without warping or scaling. Aluminized steel holds up early but loses its coating over time, especially in wet climates or where road salts are present.

Corrosion resistance: 409 outperforms plain carbon steel and aluminized steel in long-term corrosion resistance, particularly important for under-vehicle applications with water intrusion exposure.

Weldability: 409 welds cleanly and consistently, which matters both in production and when fabricators downstream are modifying or fitting the muffler into custom systems.

Cost positioning: 409 sits between aluminized steel and 304 stainless on the cost curve — close enough to aluminized pricing to be commercially viable, but with meaningfully better performance credentials. For a distributor, that's a defensible margin story.

Our oval mufflers in this line are built in SS409 as the standard spec. If your market demands aluminized for price-sensitive channels, that's a conversation — but 409 is where the category is moving.

Customization: Where Wholesale Sourcing Gets Interesting

Standard SKUs move inventory. Custom specs build accounts.

Our oval mufflers are available with the following configurable parameters — all manageable at the order level for qualified distributors:

Shell dimensions: Body width, height, and length can be adjusted to fit specific chassis envelopes. This is particularly relevant for specialty vehicle builders, van conversion customers, and truck accessory markets where clearance specs vary.

Inlet and outlet diameter: We support single and dual inlet/outlet configurations, with sizing adjustable to match downstream system requirements. Offset configurations are available for chambered designs.

Inlet/outlet positioning: Center/center, offset, and angled port configurations are available depending on the internal design and application.

Internal design selection: Chambered or perforated tube — not as a product line distinction, but as a spec choice within the same shell family.

Material finish: SS409 is standard. Additional finish options are available based on volume.

This isn't a catalog exercise. If you're building private-label programs or spec'ing for OEM-adjacent customers, the combination of adjustable dimensions and internal design options is what makes a sourcing partnership worth having.

What to Look for When Evaluating Oval Muffler Quality

If you're evaluating any oval muffler supplier — including us — these are the things that actually matter:

Weld consistency: The end caps and inlet/outlet necks are where failures happen. Look for full-penetration welds, not tack welds covered with sealer. On a 409 muffler, the weld bead should be clean and continuous.

Shell rigidity: Oval shells have less structural rigidity than round by geometry. A quality muffler compensates with appropriate shell thickness and, in some designs, embossed or dimpled panels that add stiffness without adding weight.

Baffle fit (chambered designs): Loose baffles create rattle — the most common and most damaging complaint in this category. Baffles should be fully welded to the shell, not just pressed into position.

Perforation pattern (perforated tube designs): Hole size, spacing, and pattern affect both flow and sound. Uniform perforation across the tube is a basic quality indicator. Irregular or inconsistent punching creates turbulence and uneven absorption.

Packing density and material: For perforated tube mufflers, packing that's too loose blows out fast. Packing that's too dense restricts flow. The right balance depends on the application — and a supplier who can tell you what they used and why is a supplier worth talking to.

How We Work with Distributors

We supply oval mufflers — chambered and perforated tube — to distributors and specialty retailers across North America and internationally.

What that looks like in practice:

• Standard SKUs are available for catalog programs and stock orders

• Custom dimension and port configuration requests are handled through a spec form — lead times vary by complexity and volume

• Private label programs are available for qualified accounts

• We can work with your existing product line to identify gaps the oval muffler category fills

We're not the right fit for every account. If you're looking for the lowest possible unit price on commodity product, that conversation goes somewhere else. If you're building a catalog position in performance exhaust — one that holds up technically and commercially — that's where we operate.

The Short Version

Oval mufflers aren't complicated, but the sourcing decisions inside that category matter more than most buyers realize.

Chambered designs deliver tone and durability. Perforated tube designs deliver flow and refinement. SS409 delivers the material performance that justifies the spec. Custom configurations deliver the account relationships that commodity SKUs can't.

If you're evaluating suppliers for this category, start with what's inside the shell — and work outward from there.

Interested in spec sheets, pricing, or custom configuration options? Contact us to start a conversation.
